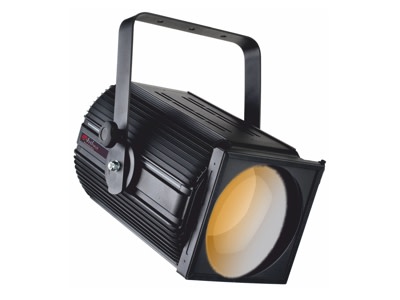

MZ SPOT 200 DYNAMIC WHITE

Ce Vzsbqbjtzqjztqa1f9r5 Ip20
Codice

MZ200FRDY MZ200PCDY

Ampere

Input

AC 90-240V 50/60Hz

Potenza

200W

Peso

9 Kg


SOURCE
Variable white Color Temperature (3.000- 5.800K) COB LED
50,000 hours Average life
FEATURES
Fresnel / PC Spot with Dynamic White LED COB
Variable Color Temperature settings
(2.800K - 5.800K)
Aluminum / steel case
Fresnel / PC lens with a perfect color Mixing
Support bracket
SPECIFICATION
Colors setting in RGBW or CMY
Variable white Color Temperature (2.800-5.800K)
Color correction
Preset Colors
Electronic Smooth Dimmer
16 bit resolution
Setting dimmer curve (halogen lamp / discharge lamp)
Strobe effect, synchronized, random and adjustable speed
Flicher-free from 600 to 5,000 Hz
Motorized zoom: 11 ° -57 ° Pc 10 ° -53 ° Fresnel
CONTROLLING
USITT DMX 512
1 DMX Channels Modes: 5
LCD Display menu for setting
RDM
Master / slave
ELECTRICAL SPECIFICATIONS
AC 90-240V 50-60 Hz
200W Max power Consumption
In-out powercon connectors (max 10 spots)
5 pin in-out Neutrik dmx connectors
Protection class: IP20

Datasheet

Download

Dati installazione

Nessun dato presente

Quote

Nessun dato presente

Codice per l'ordinazione

Nessun dato presente

Diagrammi polari

Nessun dato presente
